Multi material FDM is the practice of depositing two or more distinct filaments within a single print, using architectures ranging from filament managers and single nozzle purge systems to IDEX, tool changers, and coextrusion heads. Every one of these approaches faces the same limiting factor: interfacial adhesion between dissimilar materials and positional repeatability at the nozzle. Get those two variables wrong and the mechanical properties of the part collapse at the seam, regardless of how capable the hardware is.

TL;DR:

• Achieving strong interfacial adhesion in multimaterial FDM depends on precise nozzle calibration, matching thermal windows, and controlling extrusion volume at interfaces.
• Filament management systems trade speed for material variety, while IDEX setups require strict head-to-head repeatability to minimize waste and improve bond quality.
• Designing for multimaterial assembly should prioritize mechanical interlocks and gradual transitions to reduce stress concentrations and prevent delamination.
• Small calibration errors in nozzle offset or extrusion multiplier significantly weaken bonds and can cause warping or interface failure, requiring careful process control.
• Complex printhead innovations like nozzle arrays and coextruders enable graded compositions or higher throughput but increase hardware complexity and control demands.

Table of Contents

• Architecture families: how multimaterial FDM systems are built and their trade-offs
• Material compatibility and interfacial adhesion: experimental findings and practical implications
• DfAM and geometry tactics for multimaterial parts
• Calibration and process parameters that materially change interface quality
• Nozzle and feed innovations: coextrusion, static mixers, nozzle arrays, and production implications
• Production and workflow considerations: purge waste, filament buffers, and when to scale
• Post-processing techniques specific to multi-material prints
• Common failure modes unique to multi-material FDM prints
• Applications and industry use-cases illustrating the benefits and challenges of multi-material FDM
• Recent advances and research trends in multi-material FDM technology
• CC 3D Labs perspective: when to hire a specialist and what we handle
• How to get a quote and next steps with CC 3D Labs
• Sources
• FAQ

Architecture families: how multimaterial FDM systems are built and their trade-offs

Filament managers sit outside the toolhead and feed different materials into a shared path, relying on a filament buffer to absorb the speed mismatch between the assist motor and the extruder. Single nozzle purge systems solve material switching by pushing the old filament out through a waste tower before loading the next one, which keeps the mechanism simple but wastes material and risks contamination at the tip if purging is incomplete.

IDEX systems mount two independent extruders on separate carriages, cutting purge waste dramatically because each material has its own nozzle, but that benefit only holds if the X, Y, and Z offsets between the two heads are calibrated precisely. Multi nozzle tool changers swap physical toolheads between materials, and coextrusion designs blend filaments before deposition, both trading simplicity for throughput and added software complexity.

• Filament managers favor material variety over speed and need reliable buffering to avoid feed stalls.
• Single nozzle purge systems are mechanically simple but generate the most waste and contamination risk.
• IDEX systems cut purge volume sharply but demand tight head-to-head repeatability.
• Tool changers and coextruders raise throughput and material flexibility at the cost of calibration complexity.

Material compatibility and interfacial adhesion: experimental findings and practical implications

Interfacial strength in multimaterial parts depends on diffusion across the boundary, mechanical interlocking from surface texture, and the brief thermal window during which the second material can bond before the interface cools past its softening point. Tensile testing on ABS-PLA specimens found that extrusion temperature and over extrusion levels significantly influence the strength of the resulting composite, and that nozzle position deviations as small as about 0.04 millimeters meaningfully reduced interfacial strength in process-dependent adhesion testing.

Nozzle distance functions as a practical proxy for extrusion volume at the interface: reducing nozzle distance by 5% of layer height produces an effect on local extrusion similar to raising the extrusion multiplier by roughly 5% in that same region, according to the process-dependent adhesion testing. That gives engineers a second calibration lever when temperature alone cannot close a weak seam.

Compatibility follows thermal processing windows more than chemical similarity alone. Materials with overlapping softening and glass transition ranges tend to fuse more readily, while pairs separated by a large thermal gap struggle to bond regardless of print settings.

• Favor material pairs with overlapping extrusion temperature ranges before attempting a new combination.
• Treat a wide gap in glass transition temperature as a warning sign, not a settings problem to fix later.
• Run a small tensile or peel test coupon for any untested pairing before committing to a full production part.

DfAM and geometry tactics for multimaterial parts

Design decisions made before slicing often matter more than any process tweak made after. Placing material interfaces away from high tensile load paths, or reinforcing them with mechanical interlocks such as dovetails or tongue-and-groove joints, keeps the weakest plane of the part out of the load path entirely. Gradual transitions, built through geometric tapering or infill density gradients, distribute stress across a wider zone instead of concentrating it at a single sharp boundary.

Support material choice depends on geometry access: soluble supports handle enclosed or inaccessible cavities but add material and post-processing cost, while breakaway supports suit accessible features and cut total production cost when paired with sound design-for-manufacturing tactics.

1. Map every planned material interface against the part’s expected load paths.
2. Add mechanical interlocks anywhere an interface crosses a high stress zone.
3. Replace sharp material boundaries with tapered or gradient transitions where feasible.
4. Choose soluble supports only where breakaway removal is not physically possible.
5. Run a small test coupon of the actual material pairing before slicing the full model.

Pro Tip: Model the interface geometry as its own feature in CAD rather than letting the slicer decide where materials split, so you control exactly where the weak plane lands.

Calibration and process parameters that materially change interface quality

Nozzle offset accuracy is the single most consequential calibration step in any multi-head system, because very small deviations on the order of a few hundredths of a millimeter measurably weaken the bond. The process-dependent adhesion study found that nozzle position errors of this magnitude were enough to reduce interfacial strength, which sets a realistic tolerance target for XY and Z offset calibration on any dual-head or tool-changing setup.

Extrusion multiplier and nozzle distance work as linked controls at the interface: increasing local extrusion volume through either lever forces more material into contact across the boundary, improving mechanical interlock at the cost of slightly rougher surface finish nearby.

• Calibrate XY and Z offsets first, since positional error compounds every downstream adjustment.
• Raise extrusion multiplier or lower nozzle distance specifically at the interface layer, not across the whole part.
• Increase the second material’s extrusion temperature modestly to widen the bonding window without degrading the polymer.
• Print a small lap-joint or peel-test coupon in the actual material pair before running the production file.

Nozzle and feed innovations: coextrusion, static mixers, nozzle arrays, and production implications

Research into printhead design has produced four broad classes of innovation aimed at expanding what multimaterial FDM can do. A survey of these approaches found that nozzle arrays, coextruders, static mixers, and advective assemblers each trade capability for complexity in different ways: some enable functionally graded compositions, others focus on higher throughput, and a few are built specifically for fine-feature multimaterial interfaces.

• Nozzle arrays deposit multiple materials in parallel, raising throughput at the cost of resolution per material.
• Coextruders blend filaments before deposition, useful for graded compositions but demanding tighter thermal control.
• Static mixers homogenize material streams inline, trading fine interface control for consistency across a gradient.
• Advective assemblers manipulate flow patterns to create layered or graded microstructures within a single bead.

Pre-structured mixing at the printhead is a promising route for functionally graded parts, but it shifts complexity from the slicer into the printhead itself, which is worth the investment only when a project genuinely needs graded properties rather than discrete material zones.

Production and workflow considerations: purge waste, filament buffers, and when to scale

Purge volume is the recurring operational cost in multimaterial production, and mapping which materials print adjacent to each other in a job queue reduces the number of full purges needed per part. Filament buffers are not optional accessories in most multi-manager setups: feeding speeds between assist motors and the toolhead extruder rarely match exactly, and equipment connection guidance notes that buffers and splitters directly limit how many filament managers can be connected and how far color or material count can scale.

• Sequence material assignments to minimize the number of full purge cycles per job.
• Treat filament buffers as required infrastructure, not an afterthought, in any multi-unit setup.
• Watch accessory count (splitters, buffers, PTFE adapters) as the real ceiling on how far a setup scales.

Pro Tip: When purge waste, buffer failures, or interface rework start eating more time than the part itself is worth, that is the signal to move the job to a dedicated production workflow instead of your own bench.

Post-processing techniques specific to multi-material prints

Multimaterial parts often need finishing work that single-material prints do not. Sanding across a material boundary is riskier than on a homogeneous surface, since the two polymers can differ in hardness and remove at different rates, leaving a visible ridge instead of a smooth transition. Working the interface with progressively finer grits, and stopping short of aggressive sanding on the softer material, keeps the boundary visually even.

Solvent smoothing works well for some single materials but is generally a poor choice across a multimaterial seam, since a solvent tuned for one polymer can leave the other unaffected or, worse, degrade it. Mechanical finishing methods (sanding, light bead blasting) are the safer default when the two materials differ chemically.

Painting or dyeing across an interface benefits from a light mechanical key, such as fine sanding, applied evenly to both materials so the surface accepts a coating consistently rather than absorbing unevenly on one side. Where the interface itself is the visual feature, some practitioners intentionally leave a slight step or texture change rather than trying to disguise it entirely, since forcing a seamless blend across dissimilar polymers is harder to achieve reliably than designing the transition to read as intentional.

Vapor exposure and any thermal post-process should be tested on a scrap coupon of the exact material pair first, because uneven softening at different temperatures can distort one material before the other responds at all.

Common failure modes unique to multi-material FDM prints

Delamination at the material boundary is the most common failure, and it traces back almost every time to one of two causes: insufficient extrusion volume at the interface, or nozzle contamination carried over from a purge that did not fully clear the previous material. The process-dependent adhesion study identifies nozzle pollution as a primary root cause of interface failure, meaning periodic nozzle maintenance and deliberate purge-path planning are not optional housekeeping but core process controls.

Warping at a material transition often shows up when two polymers with different shrinkage rates cool at different speeds, pulling the interface apart from the inside as the part cools on the bed. This is distinct from ordinary warping and usually needs a design fix (a mechanical interlock or gradient transition) rather than a slicer setting.

Stringing or blobbing localized to material swaps points to purge tower calibration rather than general retraction settings, since the transition itself is the variable changing, not the base filament behavior. Support material that will not release cleanly from the model, particularly with breakaway supports on a model material it was not tested against, reflects the counterintuitive adhesion patterns documented in the polymer adhesion investigation: dedicated support materials sometimes bond more weakly than model-to-model pairings, and some support-model combinations unexpectedly bond too well to remove cleanly. Both outcomes call for a small test print before committing a full support strategy to production.

Applications and industry use-cases illustrating the benefits and challenges of multi-material FDM

Multimaterial FDM earns its place where a single part needs properties that no single filament provides: a rigid structural body paired with a flexible seal, a load-bearing frame paired with a soft-touch grip, or a functional prototype that combines a support material with an engineering-grade model material to test fit and function together. Automotive restoration and reverse-engineering work benefit from this in a specific way, since a reproduced part can combine a stiff structural material with a lower-durometer gasket surface in one build rather than requiring separate parts assembled after printing.

Product development teams use multimaterial builds to test form and function in a single iteration instead of printing and assembling two separate parts, cutting the number of prototype cycles needed before a design is validated. Functionally graded material research, which varies composition gradually through a part rather than at a sharp boundary, remains largely at the research stage: a review of FFF methods for graded materials notes real promise for parts with spatially varying properties, but also that the approach still demands careful material proportioning and tight process control that most production shops are not yet set up to run routinely.

The common thread across every use case is the same trade-off covered throughout this guide: multimaterial builds solve real design problems that single-material parts cannot, but every added material interface is another place the part can fail if adhesion and calibration are not verified first.

Recent advances and research trends in multi-material FDM technology

Printhead research has moved from simply switching materials to actively shaping how they combine. The nozzle innovation survey referenced earlier groups current research into four distinct classes of nozzle design, several of which are aimed specifically at producing functionally graded compositions rather than discrete material zones, a capability that was largely out of reach for standard purge or IDEX systems.

Academic work on experimental multimaterial rigs continues to inform how commercial systems evolve. An open thesis on multi-material, multi-technology FDM systems documents custom hardware and testing frameworks built specifically to study process improvements, work that predates much of today’s commercial hardware but still underpins the calibration logic used in current adhesion research.

The clearest trend across recent studies is a shift toward measurement-based calibration rather than fixed settings copied from one machine to another. Because interfacial strength has been shown to respond to changes as small as fractions of a millimeter in nozzle position, research is increasingly framing multimaterial print quality as a function of per-machine calibration data rather than universal presets, a shift that pushes serious multimaterial work toward test coupons and documented process parameters rather than default profiles.

CC 3D Labs perspective: when to hire a specialist and what we handle

Multimaterial projects with tight interface requirements, functional testing needs, or reverse-engineered geometry are often better handled by a dedicated production setup than a single bench machine. CC 3D Labs runs a production farm of Bambu Lab FDM printers across materials including PLA, PETG, ABS, ASA, PC, and carbon-fiber nylon, with multi-color and multi-material printing available, plus professional handheld 3D scanning accurate to about 0.1 millimeters and CAD services for scan-to-CAD reverse engineering. When an interface keeps failing on a bench setup, or a part needs to be reverse-engineered from a physical original before it can even be modeled for multimaterial printing, that is usually the point where outsourcing saves more time than it costs.

— Justin

How to get a quote and next steps with CC 3D Labs

Every job is quoted individually after a test print of the actual model; details on materials and capabilities are available on the provider’s website.

We are based in the Greater Philadelphia area (Bucks County, PA), with residential pickup for local customers and shipping available anywhere in the United States. Review the full range of 3D printing and scanning services and request a 3D print quote to get a test print started.

Sources

• Process-Dependent Influences on Adhesion in Multi-Material Extrusion
• Nozzle innovations that improve capacity and capabilities of multimaterial additive manufacturing
• Development of a Multi-Material, Multi-Technology FDM System For Process Improvement Experimentation

FAQ

What is multi-material 3D printing?

Multi-material 3D printing deposits two or more distinct filaments within a single print job, using hardware such as filament managers, purge systems, IDEX heads, or tool changers. The main challenge is achieving a strong bond between the materials at their shared boundary, which depends heavily on calibration and material compatibility.

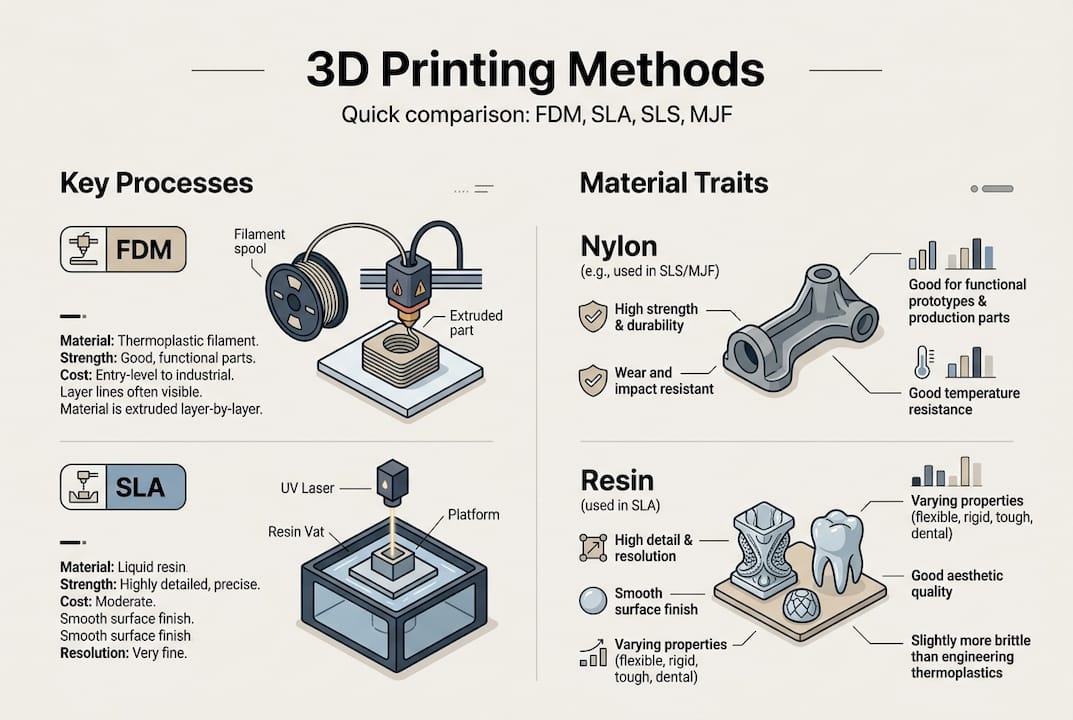

Which is better, FDM or SLA?

The two processes serve different goals: FDM builds parts from extruded thermoplastic filament and supports multimaterial combinations, while SLA cures liquid resin layer by layer and is generally not suited to combining dissimilar engineering thermoplastics in one print. For multimaterial functional parts using materials like PLA, PETG, ABS, or ASA, FDM is the applicable process.

Which 3D printer is the best for multi-material printing?

There is no single best system: the right architecture depends on the project, since filament managers suit material variety, IDEX systems reduce purge waste, and tool changers or coextruders suit higher throughput or graded compositions. Engineers typically choose based on how much purge waste, calibration effort, and software complexity a project can tolerate.

Is it worth buying a multicolor 3D printer?

A multicolor or multimaterial printer is worth the investment when a project genuinely needs different properties or colors within one part, such as a rigid body paired with a flexible seal. For a single complex or high-stakes multimaterial part, sending the job to a production service after a test print often avoids the calibration and purge-waste learning curve entirely.

Recommended

• Print Tolerance Standards Explained for Engineers
• What are tolerances in 3D printing: an engineer’s guide
• Benefits of DFM in 3D Printing for Engineers
• Explaining Advanced Filament Materials for Engineers

Annealing helps most when your part is printed in a semi-crystalline polymer like PLA, HT-PLA, or nylon, or when an amorphous polymer like ABS needs stress relief rather than tighter tolerances. Expect a real trade-off: better heat resistance and toughness in exchange for measurable shrinkage. If tolerances matter more than heat performance, print a small test coupon first and match your temperature and dwell time to the material before committing a full production run.

TL;DR:

• Annealing benefits semi-crystalline polymers like PLA, HT-PLA, and nylon by increasing heat resistance through crystallization, but causes measurable shrinkage.
• For amorphous polymers like ABS and PC, annealing mainly relieves internal stress without significant crystalline development, with potential for dimensional instability and warping.
• Material-specific optimal annealing temperatures range from 80°C to 100°C for PLA and HT-PLA, while PC requires immediate transfer to a heated environment at around 90°C to prevent delamination.
• Controlling heat distribution with forced-air ovens or embedding parts in sand reduces risks of warping, shrinkage, or delamination during the process.
• Testing a small, representative coupon in the same material and infill before full-scale annealing helps determine the feasibility for parts with tight tolerances or complex geometries.

Table of Contents

• How annealing works: crystallization versus stress relief
• PLA, PETG, ABS, PC, and nylon respond very differently to heat
• Setting up a safe, repeatable annealing process at home or in a shop
• Warping, shrinkage, and delamination: what actually goes wrong
• Testing before you commit a production part
• How CC 3D Labs approaches annealed and dimensionally sensitive parts
• What the research actually supports, and where shop habits get ahead of it
• Get a quote for annealed or dimensionally controlled parts
• Sources
• FAQ

How annealing works: crystallization versus stress relief

Annealing means holding a printed part at an elevated temperature for a set time, then cooling it slowly. What happens inside the plastic during that hold depends entirely on the polymer’s internal structure, and that distinction decides whether annealing is worth doing at all.

Semi-crystalline polymers, including PLA, HT-PLA, and nylon, contain regions where polymer chains can pack into ordered, crystalline structures alongside disordered amorphous regions. Heating these materials above their glass transition temperature (Tg) but below their melting point lets the amorphous chains rearrange and lock into additional crystalline structure. That process, called crystallization, is the mechanism behind most of the heat resistance gains reported for annealed PLA and HT-PLA parts.

Amorphous polymers like ABS and PC have no crystalline structure to grow. Heating them mainly relieves internal stress that built up during rapid cooling in the print process. Annealing amorphous materials like ABS can increase ductility by 9.7 to 17.56 percent at higher annealing temperatures, which reflects stress relief and improved interlayer cohesion rather than any new crystalline content.

Choosing the right temperature means knowing where Tg and the crystallization temperature (Tc) sit for your material. Anneal too close to Tg and little happens. Anneal too close to Tc, or above it, and you risk softening the part enough to lose its shape.

Annealing tends to help:

• Heat deflection temperature (HDT) or Vicat softening temperature (VST), often the biggest single gain
• Tensile and flexural strength, particularly in reinforced blends
• Impact resistance in several published PLA studies

Annealing does not fix:

• Poor layer adhesion from underextrusion or a cold nozzle, a separate print-quality issue covered in our guide to layer adhesion in 3D prints
• Anisotropic weakness along the Z axis, since annealing does not re-fuse layers, it just relaxes stress within them
• Warping caused by design geometry, which annealing can actually make worse by softening the part while internal stresses release unevenly

Pro Tip: Before annealing a finished part, print a scrap coupon in the same material and infill, and run your intended temperature and time on that piece first. It costs you a few grams of filament and saves a production part.

PLA, PETG, ABS, PC, and nylon respond very differently to heat

Every material family reacts to annealing on its own terms, and matching temperature to polymer chemistry is the single most important decision in the process.

PLA and HT-PLA. Standard PLA anneals well in the 80 to 100°C range. Optimized thermal annealing work found roughly 90°C for 120 minutes produced strong mechanical improvements in PLA, with temperature accounting for most of the variation in outcomes across the tested conditions. Other published work on PLA and PLA blends found impact strength and Vicat softening temperature rising after 0.5 to 2 hours at 80 to 100°C. HT-PLA, formulated specifically for post-print heat treatment, is typically annealed around 100°C, with Polymaker recommending 30 to 60 minutes for parts under 4 millimeters thick and one to two hours for parts near 6 millimeters, expecting roughly 0.3 to 0.6 percent dimensional change. Standard PLA parts can see dimensional shifts in a similar range, sometimes up to about 1 percent depending on geometry and infill.

PETG and PETG with carbon fiber. PETG is less crystalline by nature and responds to annealing with more modest strength gains than PLA. Carbon-fiber-reinforced PETG tends to hold its shape better during annealing than the unfilled resin, since the fibers constrain how much the surrounding matrix can shift as it heats. That added dimensional stability is one reason CF-reinforced filaments show up often in parts intended for post-process heat treatment.

ABS and ASA. These amorphous materials benefit mainly from stress relief rather than crystallization gains. A 2025 study on FDM-manufactured ABS parts found annealing in typical and loaded modes raised ductility by 9.7 to 17.56 percent at certain temperatures, but the same research also recorded shrinkage of up to roughly 27 percent in one printing-direction axis under aggressive annealing conditions. That gap between the ductility win and the shrinkage risk is exactly why loaded annealing, which mechanically constrains the part while it softens, matters so much for ABS: the same study found it meaningfully reduced dimensional change while preserving the ductility improvement. Recycled carbon fiber reinforcement adds another layer of benefit. Research on rCF-reinforced ABS reported tensile strength gains up to 12.64 percent and flexural strength gains up to 42.33 percent for 20 weight percent rCF samples after annealing, along with better dimensional stability than unreinforced ABS. If you are weighing materials for a durable part before you even get to annealing, our comparison of PLA, PETG, and ABS is worth reading first.

Polycarbonate. PC is the one material where timing is not optional. Polymaker recommends transferring PC parts directly into an oven held at about 90°C immediately after printing, and holding them there for at least 2 hours. Letting a printed PC part cool to room temperature before annealing risks internal delamination and lost layer adhesion that the anneal cycle cannot reverse.

Nylon and CF-reinforced nylon. Nylon anneals at comparatively low temperatures, commonly 80 to 100°C, but for many hours rather than minutes. The bigger complication is moisture: annealing dries nylon out, and Polymaker’s guidance notes that practitioners recondition annealed nylon by exposing it to ambient humidity for hours or days afterward to restore the ductility nylon needs to perform as intended. Carbon-fiber-reinforced nylon and other CF composites showed particularly strong results in published testing, with large flexural improvements and better anneal-related dimensional stability than their unreinforced counterparts, likely for the same reason CF helps PETG: the fibers resist the matrix’s tendency to shift as it softens.

Across nearly every material tested, one variable kept outranking the anneal itself. A regression-model study found layer height had a larger effect on final tensile strength than either annealing time or annealing temperature, with one tested combination of 0.1 millimeter layers, 60 minutes, and 90°C producing the best results for PLA. Annealing is a refinement of a good print, not a substitute for one.

Setting up a safe, repeatable annealing process at home or in a shop

Getting consistent results from annealing depends less on the material and more on how evenly you can hold a target temperature. A cheap household oven with a swinging thermostat can undo a well-chosen temperature range by overshooting it in hot spots.

1. Check your oven’s real temperature. Place an independent thermometer or thermocouple inside the oven near where the part will sit, run a cycle, and compare the reading against the dial setting before you commit an actual part.
2. Preheat before loading. Bring the oven to the target temperature first rather than putting the part in during warmup, which limits its exposure to overshoot spikes.
3. Favor forced-air or convection ovens. Polymaker’s guidance notes that household ovens have uneven heat distribution and hot spots, and recommends forced-air or convection ovens, or heat-diffusing media, as a workaround when a dedicated unit is not available.
4. Diffuse heat with sand or foil. Embedding a part in sand, or wrapping it in foil-covered sand pockets, spreads heat more evenly across the surface and reduces the chance of one section reaching its melting point while another lags behind.
5. Avoid direct oil-bath contact. Oil baths can transfer heat efficiently, but direct contact risks surface damage on parts not specifically designed for immersion; sand and forced air are the more broadly reliable choices for shop use.
6. Build a loaded-annealing fixture for demanding parts. A simple mold or clamp that holds the part’s key dimensions under light compressive weight while it softens can suppress warp substantially, since the part cannot shift out of shape as easily as it would unconstrained.
7. Scale dwell time to thickness. Thin sections heat through quickly; thick sections need proportionally longer holds to reach a uniform internal temperature, not just a hot surface.
8. Cool slowly, ideally with the oven off and the door closed. Polymaker also recommends removing parts only after the oven has cooled, since rapid cooling can reintroduce the stress the anneal was meant to relieve.

Pro Tip: For a first attempt at loaded annealing, a flat aluminum plate and a few machined blocks as weights will constrain most flat or lightly curved parts well enough to see whether the technique is worth building a dedicated fixture for.

Warping, shrinkage, and delamination: what actually goes wrong

Annealing failures almost always trace back to uneven heat or unconstrained geometry, and both are predictable enough to plan around.

Localized melting from oven hot spots is the most common home-shop failure, usually showing up as a soft, sagging section on one side of a part while the rest holds its shape. Severe anisotropic shrinkage is the second major risk. Aggressive annealing conditions have produced shrinkage up to roughly 27 percent in one printing-direction axis for ABS, a scale of change that will ruin fit on any part with mating tolerances. Polycarbonate carries a third, distinct risk: internal delamination if the part cools too quickly after the anneal cycle rather than being held at temperature and allowed to cool with the oven.

Geometry makes all three risks worse. Thin-wall sections heat and soften faster than thick ones, sudden thickness transitions create uneven internal stress as the part heats, and large flat areas have more surface area available to bow or sag under their own softened weight.

Mitigation options, roughly in order of effort:

• Anneal the part while it is still attached to the build plate, which constrains its base dimensions during the most vulnerable part of the heat cycle
• Build a simple fixture or mold that holds critical dimensions in place
• Embed the part in sand to both diffuse heat and physically support thin sections
• Use loaded annealing, applying light compressive weight to actively suppress warp in demanding geometries
• Add a scaling allowance in the CAD model before printing, anticipating the shrinkage you expect from testing, then machine or finish to final dimension after annealing

There are cases where annealing is simply the wrong call. Parts with mating surfaces that need to hold FDM’s typical dimensional tolerance of roughly ±0.2 to 0.5 millimeters are poor annealing candidates unless you have a fixture capable of holding those tolerances through the heat cycle. Complex assemblies with multiple interlocking parts and no fixture control are similarly risky, since even a small shift in one component can throw off fit across the whole assembly.

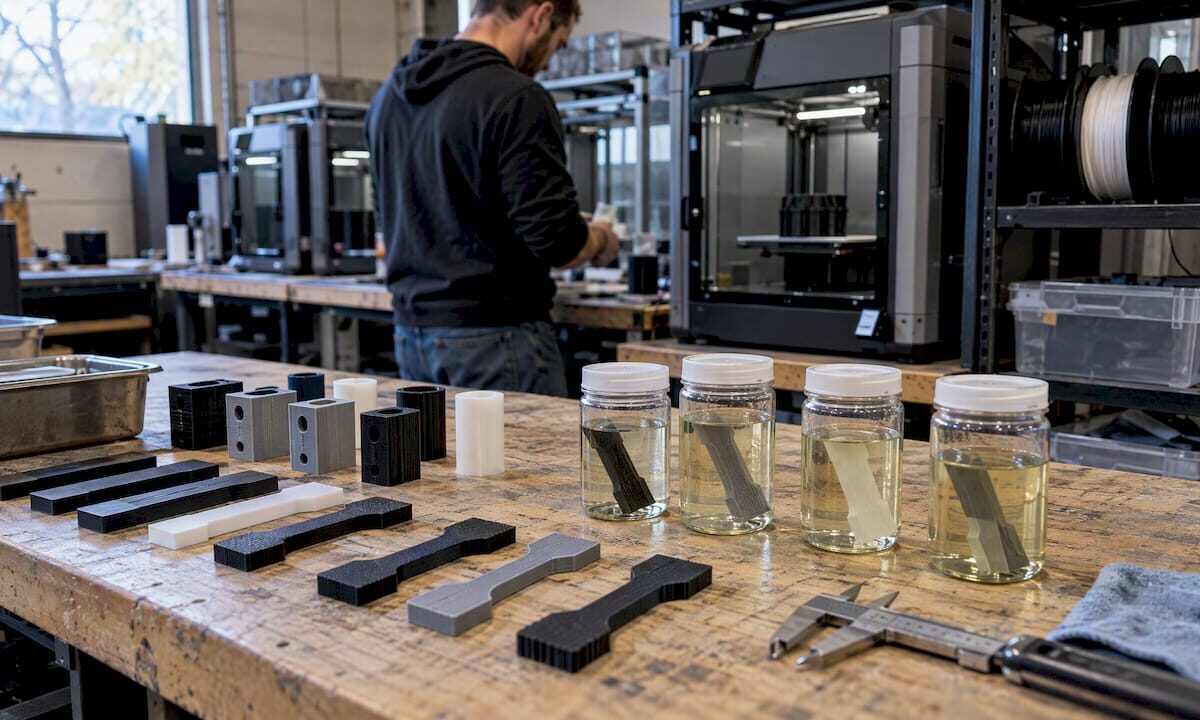

Testing before you commit a production part

Deciding whether annealing is worth the risk on a real part comes down to a small, repeatable test rather than a guess.

1. Pick a starting temperature and time from manufacturer guidance or published testing for your specific material, then adjust slightly for your part’s wall thickness, infill density, and layer height, since thicker or denser sections need longer to reach a uniform internal temperature.
2. Print dedicated test coupons, not the production part itself: a dog-bone tensile sample, a solid cube, and a thin-wall sample that mimics your thinnest production feature.
3. Record baseline dimensions on all three coupons before annealing, then measure again after the anneal cycle and full cool-down to capture per-axis dimensional change rather than a single overall number.
4. Inspect for delamination or void closure, particularly on the thin-wall sample, and if you have access to basic mechanical testing, compare tensile or impact results before and after.
5. Set a decision threshold before you test, not after: if the dimensional change on your thin-wall coupon exceeds what your tolerance budget allows, the part is a candidate for a fixture-controlled anneal or for skipping annealing altogether in favor of a different material.

A part that only needs modest heat resistance and has generous tolerances is usually worth annealing without much fuss. A part with tight mating dimensions and no fixture plan is usually not, at least not without redesigning around expected shrinkage first, a consideration covered further in our guide to precision part qualities.

How CC 3D Labs approaches annealed and dimensionally sensitive parts

We treat annealing as one option among several, not a default step. If a customer needs heat resistance and can tolerate the dimensional shift, we discuss annealing directly; if tolerances are tight, we are more likely to recommend a different material or a finishing approach that does not involve a full heat cycle, an option covered in our overview of post-processing choices.

Our workflow follows the same logic outlined above: a test print first, an evaluation of how the material and geometry responded, fixture or mold design if loaded annealing is warranted, the anneal cycle itself, then inspection against the customer’s tolerance requirements. Every job is quoted after that test print, since annealing behavior varies enough by geometry that a fixed price before testing would not reflect the real risk. Automotive restorers reproducing legacy parts and engineers running small heat-resistant batches are the customers who ask for this most often, usually through our engineering-grade printing service.

What the research actually supports, and where shop habits get ahead of it

The strongest, best-supported claim in this entire body of research is narrow: annealing reliably improves heat resistance in semi-crystalline polymers and relieves stress in amorphous ones, and it reliably costs you some dimensional accuracy in return. Everything past that basic trade is more conditional than shop lore usually admits.

The most overrated idea is that annealing is a general-purpose upgrade you apply after any print to make it stronger and tougher. The data does not support that as a blanket rule. Layer height and print quality influence final strength more than the anneal cycle does in more than one study, which means a poorly printed part will still be a mediocre part after annealing, just a mediocre part that is harder to size correctly.

The most underused idea is loaded annealing. Most hobbyist guidance still treats annealing as an unconstrained bake, when a simple fixture or a few weights can turn a risky process into a controlled one. If you take one thing from this article, test a coupon under load before you anneal anything that needs to fit something else.

— Justin

Get a quote for annealed or dimensionally controlled parts

If you have decided annealing is worth pursuing but do not want to gamble a production part on a home oven, CC 3D Labs runs that test-print-first process for you. We print on a farm of FDM printers across various materials and build fixtures when a part’s geometry calls for loaded annealing to hold its shape through the heat cycle.

• We start every annealed-part job with a test print, so you see real dimensional behavior before committing to a full run
• We design simple fixtures or molds when loaded annealing is the right call for your geometry
• We handle post-process inspection against your tolerance requirements before final quoting

Tell us your material, your heat-resistance target, and your tolerance requirements when you request a quote, and we will scope the test print from there.

Sources

• Annealing — Polymaker knowledge base

FAQ

What do you use to anneal 3D prints?

Most practitioners use a forced-air or convection oven set to a material-specific temperature, since uneven heat in standard household ovens can create hot spots that deform parts. Sand embedding or foil-wrapped sand pockets are common workarounds for diffusing heat when a dedicated oven is not available.

Should I anneal my 3D prints?

Anneal when you need better heat resistance or toughness and can tolerate dimensional change, since semi-crystalline materials like PLA and nylon gain the most from the process. Skip it on parts with tight mating tolerances unless you plan a fixture, because FDM parts typically hold tolerances around ±0.2 to 0.5 millimeters that annealing can easily exceed.

Can I anneal 3D prints in a toaster oven?

A toaster oven can work for small parts, but its uneven heat distribution raises the risk of localized melting compared with a forced-air or convection oven. If you use one, monitor internal temperature directly rather than trusting the dial, and consider embedding the part in sand to spread heat more evenly.

What are the downsides of annealing?

The main downside is dimensional change: aggressive annealing conditions have produced shrinkage up to roughly 27 percent in one axis for ABS, and even mild anneals shift HT-PLA parts by an estimated 0.3 to 0.6 percent. Polycarbonate carries an added risk of internal delamination if it is allowed to cool before annealing instead of being transferred directly into a preheated oven.

Recommended

• Overcome common 3D printing challenges: pro tips for product developers
• How to design 3D prints: reliable prototypes & parts
• What Is Post-Processing in 3D Printing and Why It Matters
• Print Tolerance Standards Explained for Engineers

Carbon fiber reinforcement raises nylon’s stiffness dramatically and often boosts tensile strength as well, but the gains depend heavily on how the part is printed. Studies on PA6 loaded with carbon fiber report tensile strength climbing to roughly 166 MPa versus about 70 MPa for unreinforced PA6, while build orientation alone can swing printed tensile results substantially. The tradeoff: less elongation before failure and a real risk of brittle behavior if you design around the wrong axis.

TL;DR:

• Printed tensile strength of carbon fiber nylon greatly varies depending on build orientation, with XY directions achieving near twice the strength of vertical builds.
• Higher-grade fibers like T700 produce stiffer and stronger parts, but reduce impact resistance and increase brittleness.
• Moisture content in filament can reduce tensile strength by more than half, making filament drying a critical pre-print step.
• Using a small test matrix to determine optimal orientation and infill density provides more reliable strength predictions than relying solely on datasheet values.

Table of Contents

• How strong is carbon fiber nylon compared to plain nylon?
• Why carbon fiber changes nylon’s strength and toughness tradeoffs
• Printing variables that decide your part’s real-world strength
• Post-processing steps that measurably raise modulus
• Deciding when carbon fiber nylon is the right call
• How CC 3D Labs validates carbon fiber nylon parts
• The gap between datasheet numbers and printed reality
• Sources
• FAQ

How strong is carbon fiber nylon compared to plain nylon?

The honest answer is “it depends on which nylon, which fiber, and which direction you pull it.” A comparison across baseline nylon, chopped-fiber filaments, and datasheet figures shows why a single number rarely tells the whole story.

The spread between the best and worst rows is not noise. It is the difference between injection-molded or compounded composite (dense, fiber well-distributed) and an FDM print where layer bonding and fiber alignment depend entirely on how you orient the part on the bed. Datasheet numbers from Polymaker represent controlled test coupons, not necessarily your geometry, so treat the XY figure as a ceiling and the Z figure as a floor for real parts.

Why carbon fiber changes nylon’s strength and toughness tradeoffs

Carbon fiber does two things to a nylon matrix: it carries load that the polymer alone cannot, and it stiffens the material by resisting deformation under stress. That is why flexural and tensile numbers climb together in loaded PA6, but it also explains why elongation at break drops. Fiber ends act as stress concentrators, so once a crack initiates near a fiber tip, it propagates faster than it would through pure polymer.

• Tensile and flexural strength both rise with fiber loading, but the PA6 review documents reduced elongation at break as a near-universal side effect.
• T300 fiber tends to produce higher stiffness at a given loading than lower-grade chopped fibers, while T700 grades are typically specified where fatigue resistance matters more than raw modulus.
• PA6 generally reaches higher as-molded strength than PA12 at similar fiber content, but PA12 absorbs less moisture over time, which matters for long-term dimensional stability.

None of this is exotic materials science. It is the same fiber-matrix mechanics that governs any short-fiber composite, carbon or glass, and it means a part optimized for stiffness is not automatically optimized for impact resistance.

Printing variables that decide your part’s real-world strength

Orientation is the single biggest lever an operator controls. The Nylon 12 CF study cited above found lateral prints outperforming vertical prints by roughly 2.5 times in ultimate tensile strength, and a separate case study on carbon-fiber nylon found ZX-oriented samples reaching only about half the strength of XY or XZ prints. If your load path is known, print so the strongest raster direction lines up with it, not with whatever orientation prints fastest.

• Align the longest print axis with the primary load direction rather than defaulting to whatever orientation minimizes support material.
• Choose solid or near-solid infill for load-bearing sections; gyroid or hex patterns save time but trade off strength, a point covered in more depth in our infill guide.
• Keep melt temperature and extrusion pressure consistent, since both affect fiber orientation within each bead and how well adjacent layers fuse, detailed further in our layer adhesion guide.
• Dry filament before printing: one case study found dry samples reaching 2.4 times the tensile strength of wet samples of the same material, making moisture control arguably more important than any single print setting.

Pro Tip: Print a small 2×2 matrix, two orientations by two infill densities, then pull each coupon to failure. Four data points from your own printer and filament lot will tell you more than any published datasheet.

Post-processing steps that measurably raise modulus

Drying is the first and cheapest lever, but heat treatment after printing can do more for stiffness than any single process tweak during printing. A two-stage annealing method for short carbon fiber reinforced PA6 raised tensile modulus from 7.7 to 9.0 GPa, roughly a 16.8% gain over single-temperature annealing, by allowing fiber alignment and crystallinity to develop in two distinct thermal steps rather than one abrupt cycle.

• Dry filament to spec before printing rather than relying on post-print correction, since moisture absorbed into the matrix during printing cannot be fully reversed by later heat treatment.
• Two-stage annealing outperforms single-temperature annealing for modulus gains, but requires tighter process control to avoid warping thin sections.
• Compaction under pressure during post-heat treatment can close porosity and improve fiber-matrix bonding, but aggressive pressure or overheating risks degrading the matrix rather than strengthening it, so trial on sacrificial coupons first.

Deciding when carbon fiber nylon is the right call

Carbon fiber nylon earns its place in stiff, heat-tolerant fixtures, jigs, and brackets where unreinforced nylon flexes too much and metal is overkill on cost or lead time. It is a poor choice where impact resistance matters more than stiffness, since the reduced elongation at break makes brittle failure more likely under shock loads.

1. Confirm the load case is dominated by stiffness or heat resistance rather than impact, since CF-nylon trades toughness for modulus.
2. Design fillets instead of sharp internal corners, since fiber ends already concentrate stress and a sharp transition compounds it.
3. Orient the print so raster direction follows the primary stress path, informed by the orientation data above.
4. Print a small specimen matrix before committing to final geometry, and build in a conservative safety factor, especially near the Z-orientation lower bound, until your own test data replaces the published range.

How CC 3D Labs validates carbon fiber nylon parts

CC 3D Labs runs a Bambu Lab FDM farm capable of printing carbon fiber nylon alongside PLA, PETG, ABS, and ASA, and every functional-part job starts with a test print of your actual model rather than a quote based on assumptions. That test print becomes your orientation and infill checkpoint before committing to a full run.

For parts replacing an existing component, our professional handheld 3D scanning, accurate to about 0.1 mm, captures the original geometry for reverse engineering or scan-to-CAD work, and our CAD team can adjust wall thickness or fillet radii to reduce stress concentration before the part ever prints. This loop, test print, review, tailored quote, suits prototype validation and low-volume functional runs where getting the orientation right matters more than getting a part fast.

The gap between datasheet numbers and printed reality

The most overrated number in this entire material class is the single tensile strength figure printed on a filament spool. Every datasheet reports a best-case XY orientation tested under controlled conditions, and every engineer who has pulled their own printed coupons knows that number rarely survives contact with a real build orientation, a humid filament box, or a rushed print profile.

What the evidence actually supports is a design mindset, not a lookup table. Treat carbon fiber nylon as an anisotropic material from the start, the same way you would treat plywood or a laminate, and never assume isotropic behavior just because the resin itself is homogeneous. Prioritize orientation and moisture control before you touch infill density or exotic post-processing, since those two variables account for the largest swings in the data reviewed here.

— Justin

Sources

• Carbon Fiber-Reinforced Polyamide 6 Composites: Impact of Fiber Type and Concentration on the Mechanical Properties
• PolyMide™ PA6-CF (Polymaker) product page/datasheet
• Determination of the Mechanical Tensile Characteristics of Some 3D-Printed Specimens from NYLON 12 CARBON Fiber Material
• Two-stage annealing method for short carbon fiber‐reinforced nylon 6 in fused filament fabrication

FAQ

Is carbon fiber nylon strong?

Carbon fiber reinforced nylon is substantially stiffer and often stronger in tension than unreinforced nylon, with one study reporting tensile strength near 166 MPa versus about 70 MPa for the pure polymer. Actual printed strength depends heavily on build orientation and moisture content at print time.

Which is stronger, PA6-CF or PA6 GF?

Both carbon fiber and glass fiber raise PA6’s stiffness and tensile strength over the unreinforced polymer, with carbon fiber generally producing higher stiffness at equivalent loading due to its higher modulus fibers. Specific comparisons depend on fiber grade, loading percentage, and test orientation, so a direct number should come from matching datasheets rather than a general rule.

Is PA6-CF strong?

PA6-CF is one of the stiffer FDM-printable materials available, with datasheet tensile strength around 105 MPa in the XY orientation dropping to about 67.7 MPa in the Z direction. That gap makes orientation the deciding factor in whether a printed PA6-CF part performs close to its datasheet potential.

What is nylon reinforced with carbon fiber?

Carbon fiber reinforced nylon is a composite where chopped or continuous carbon fibers are blended into a PA6 or PA12 matrix to increase stiffness and often tensile strength compared with the unreinforced polymer. The tradeoff is reduced elongation at break, meaning the material resists bending but can fail more abruptly under impact.

Ready to validate a carbon fiber nylon part before committing to a full run, get a quote based on a test print of your actual model rather than a generic estimate.

Recommended

• Why Choose Filament for Engineering Parts: 2026 Guide
• Engineers: Choose Heat Resistant Filaments by HDT and Printer Limits
• Explaining Advanced Filament Materials for Engineers
• Why Use High-Temp Filaments for Engineering-Grade Parts

In this article, “ITAR 3D printing” refers to professional FDM printing and handheld 3D scanning for prototypes, functional parts, and low-volume production runs, not export-control compliance work. Product developers, engineers, and automotive or restoration shops use this combination to turn a worn part, a rough sketch, or a CAD file into something they can hold and test. The typical deliverables are printed parts in materials like PETG or ABS, scan-derived CAD models ready for editing, and a test print that becomes the basis for a full production quote.

TL;DR:

• FDM material selection determines a part’s real-world load capacity, with PETG suitable up to 80°C and ABS or ASA handling up to 100°C before warping risks arise.
• Handheld 3D scanning achieves about 0.1 mm accuracy, but reflective or black surfaces require treatment, and higher resolution reduces cleanup work for tight tolerances.
• Proper design review includes wall thickness, orientation along load paths, and realistic tolerances, with split parts and minimal supports improving print success.
• Most quotes are based on a test print that reveals actual material performance and fit, rather than relying on fixed pricing, delaying formal quotes until after validation.
• ITAR compliance requires strict control over digital files and physical parts, including secure storage, limited access to verified U.S. persons, and proper classification before export licensing.

Table of Contents

• What FDM Materials Actually Handle Real-World Loads?
• How Accurate Is Handheld 3D Scanning for Reverse Engineering?
• Design-for-Manufacturability Checklist Before You Send Files
• What Tolerance and Accuracy Can You Actually Expect?
• How the Quoting and Production Process Actually Works
• Why CC 3D Labs Fits This Kind of Work
• What ITAR Compliance Actually Requires for 3D Printed Parts
• Handling and Storing ITAR-Controlled Files and Parts
• Getting ITAR Licenses and Export Classifications in Order
• Security Practices for ITAR-Compliant 3D Printing Workflows
• Common Defense Applications of 3D Printing Under ITAR
• Outsourcing FDM Printing vs. Buying Your Own Equipment
• How to Request a Quote and What to Send
• Sources
• FAQ

What FDM Materials Actually Handle Real-World Loads?

Material choice decides whether a part survives its job or cracks on the first stress test. PLA prints easily and holds tight tolerances, but it softens around 60°C, which rules it out for anything sitting near an engine bay or in direct sun. PETG trades a little dimensional crispness for real toughness and chemical resistance, and it tolerates roughly 80°C before it starts to deform. ABS and ASA push heat and UV resistance further, into the 100°C range, but both are prone to warping and layer splitting if the print isn’t managed carefully. Polycarbonate (PC) and carbon-fiber-filled nylon sit at the top of the FDM strength ladder, offering serious mechanical performance for functional parts, but they demand a hardened nozzle and a hot end capable of sustained high temperatures.

A few practical notes matter more than most people expect:

• Nylon and PC absorb moisture from the air, and a damp spool prints brittle, stringy parts no matter how well the printer is tuned.
• Filament should be dried before use and stored in sealed containers with desiccant between jobs.
• Carbon-fiber nylon chews through brass nozzles fast, so it needs hardened steel components to hold tolerance over a production run.
• If a part needs to survive a hot engine compartment or repeated flexing, ask for an engineering-grade filament or a post-print annealing step rather than assuming PLA will scale up.

CC 3D Labs runs its production farm on Bambu Lab P1S printers, chosen partly because their enclosed chambers help stabilize temperature-sensitive materials like ABS and ASA across long runs.

How Accurate Is Handheld 3D Scanning for Reverse Engineering?

Professional handheld 3D scanning delivers accuracy to about 0.1 mm, tight enough to capture the geometry of a discontinued bracket, a cracked intake manifold, or a custom-fit automotive panel without an original CAD file to reference. The typical workflow moves from a raw aligned mesh to a cleaned watertight mesh, then, on request, into a parametric CAD file in STEP or IGES format that an engineer can actually edit.

The most common use cases at CC 3D Labs’s 3D scanning lab are legacy automotive parts that no longer exist in any catalog, damaged components that need to be rebuilt from a mating survivor, and fit-check work where a new part has to slot into an existing assembly.

Scanning has real limits, though. Reflective chrome trim and thin-walled features tend to confuse a scanner’s optics, and glossy black plastic can behave almost like a mirror.

• A light dusting of matte developer spray on reflective surfaces improves scan capture dramatically.
• Small or lightweight parts often scan more cleanly when mounted in a simple fixture instead of held by hand.
• Higher scan resolution reduces the cleanup work needed before a mesh is print-ready, which directly affects how tight the final part’s tolerances can be.

Pro Tip: If a part will be printed multiple times, ask for a full CAD re-creation rather than a raw mesh export. A parametric model lets you adjust wall thickness or tolerances later without rescanning.

Design-for-Manufacturability Checklist Before You Send Files

A few minutes of design review before submitting a file for a quote saves a full print cycle of trial and error. Use this sequence:

1. Check wall thickness. As a rough range, keep structural walls at 1.5 to 3 mm depending on material; thinner sections in PLA can survive where the same thickness in ABS would flex or crack under load.
2. Plan orientation around load paths. FDM parts are inherently anisotropic. Layers bond well in-plane but resist pulling apart across layers far less. Orient the part so critical stresses run parallel to the layers, not perpendicular to them.
3. Set realistic tolerances for mating parts. A practical FDM baseline runs ±0.2 to 0.5 mm depending on geometry and material. If a bore needs to be press-fit, plan for a light reaming pass rather than expecting the printed hole to be final.
4. Minimize support structures. Chamfer downward-facing overhangs where possible, and consider splitting a complex part into two simpler bodies that bond together instead of forcing a printer to bridge long unsupported spans.
5. Annotate the file. Flag critical dimensions, required fits, and any surface finish expectations directly on the drawing or in the submission notes.
6. Pick the right file format. Send STEP files for assemblies where geometry needs to stay editable, and STL for single-body prints where the mesh is final.

Pro Tip: Anisotropy is the single biggest reason a “working” prototype fails in the field. A snap-fit tab or a screw boss almost always needs its layer lines running with the stress, not against it.

What Tolerance and Accuracy Can You Actually Expect?

A practical baseline for production-farm FDM work is a dimensional tolerance range that typically varies with part geometry, wall thickness, and material behavior during cooling. NIST’s research on polycarbonate parts made by fused filament fabrication found that reducing layer height, raising nozzle temperature, and applying extrusion compensation can push geometric deviation down to very low levels in controlled testing, though real-world parts with complex geometry rarely hit that ceiling consistently.

Nozzle temperature, layer height, and extrusion rate all interact to change both the outer geometry and the strength of the bond between layers. NIST’s work on optimizing FFF process parameters under uncertainty shows that physics-informed calibration of these settings reduces variability far more reliably than adjusting them by trial and error.

Before signing off on a batch, most shops rely on a short acceptance sequence:

• Visual inspection for layer separation, warping, or surface defects.
• Caliper checks against critical dimensions on the drawing.
• A physical fit trial in the actual assembly.
• A simple CMM check for parts where a mating tolerance is unusually tight.

This is why the test piece is printed before quoting a production run. It catches geometry or material issues while they’re cheap to fix, not after fifty parts are already off the printer. For readers who want a formal benchmark, NIST’s Additive Manufacturing test artifact offers a standardized way to measure an AM system’s geometric accuracy, and it can serve as a shared acceptance piece between a buyer and a print provider.

How the Quoting and Production Process Actually Works

Getting from a file to finished parts follows a consistent sequence:

1. Submit an inquiry with your CAD or scan files, target material, and intended use.
2. File review, where orientation, wall thickness, and any tolerance flags get checked against the requested material.
3. Material and orientation recommendation based on the part’s mechanical requirements.
4. Test print, which validates fit, finish, and critical dimensions before committing to volume.
5. Custom quote, built from what the test print actually revealed rather than a generic price list.
6. Approval and production run, followed by shipping or pickup.

To speed that process, include the number of parts needed, the end use (decorative, functional, load-bearing), any critical dimensions with tolerances, and whether a specific surface finish matters. There’s no fixed price sheet here. Every job is quoted individually after a test print confirms material behavior and fit, so budgeting internally means treating the test print as the moment real numbers appear, not the initial inquiry.

Local customers in the Greater Philadelphia area use residential pickup rather than a walk-in storefront, and finished orders ship anywhere in the United States. Fragile or thin-walled parts should be flagged at inquiry so they can be packed with appropriate bracing rather than tossed in a box with loose padding.

Why CC 3D Labs Fits This Kind of Work

CC 3D Labs runs a production farm of Bambu Lab FDM printers out of Bucks County, Pennsylvania, covering PLA, PETG, ABS, ASA, PC, and carbon-fiber nylon, with multicolor and multi-material printing available on qualifying jobs. The 3D scanning lab handles reverse engineering and legacy part reproduction using professional handheld 3D scanning with accuracy to about 0.1 mm, paired with CAD modeling services for readers who need a scanned mesh turned into an editable model.

This setup fits automotive restoration jobs where an original part no longer exists, product developers iterating toward a production-ready prototype, and small businesses that need a short manufacturing run without committing to injection tooling. Every job still runs through the same test-print-first process before a quote is finalized, whether you’re starting with 3D printing, scanning, or CAD work.

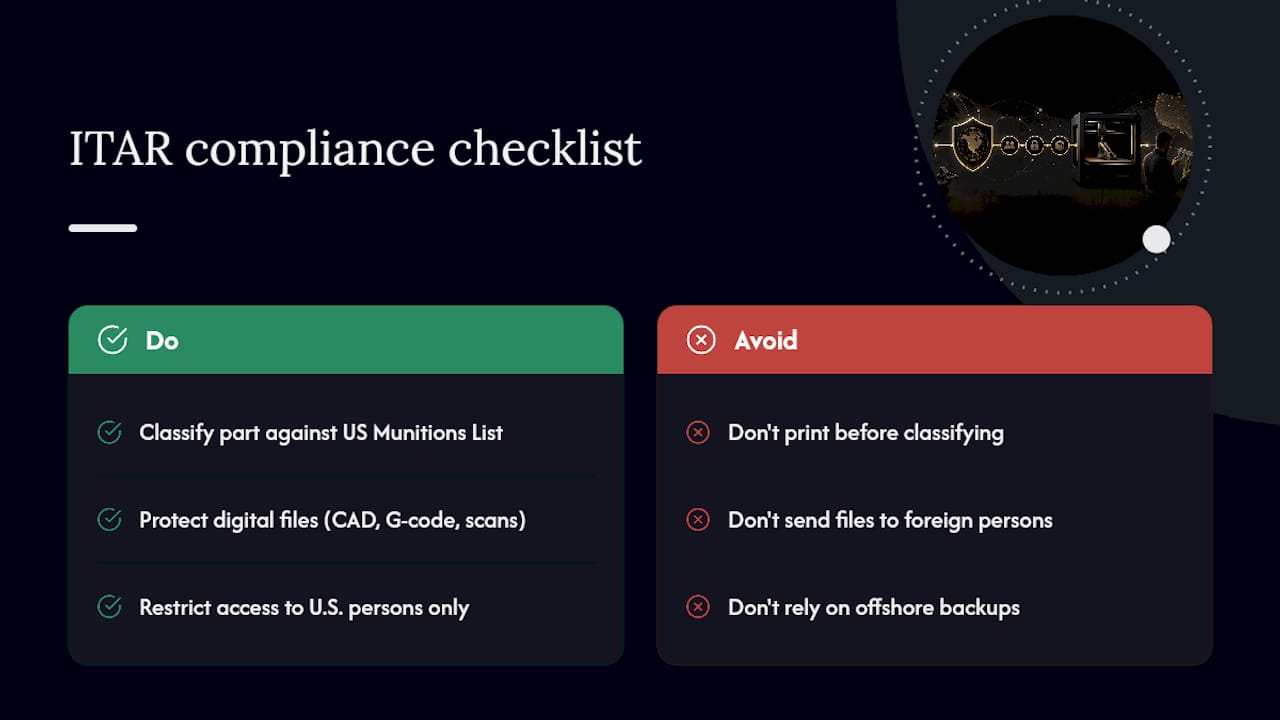

What ITAR Compliance Actually Requires for 3D Printed Parts

The International Traffic in Arms Regulations govern the export of defense articles and related technical data, and that scope extends to digital files used to manufacture controlled parts, not just physical hardware. A CAD model, a slicer file, or a scan of a defense-related component can itself count as controlled technical data under the regulations administered by the U.S. Department of State’s Directorate of Defense Trade Controls.

For a shop or engineering team handling this kind of work, compliance starts with correctly classifying the part against the United States Munitions List before any file gets printed, scanned, or transmitted. That classification determines whether the item falls under ITAR at all, or under a separate export control regime like the Export Administration Regulations. Getting that classification wrong at the outset creates risk that no amount of careful printing practice can fix later.

Because ITAR treats technical data broadly, a company printing a defense-related part needs controls not just on the physical part leaving the building, but on every digital file that describes it. That includes CAD source files, sliced G-code, scan meshes used for reverse engineering, and even design revisions exchanged by email. Any of those can constitute a controlled export if they reach a foreign person or leave U.S. soil, even unintentionally through a cloud backup or an offshore contractor.

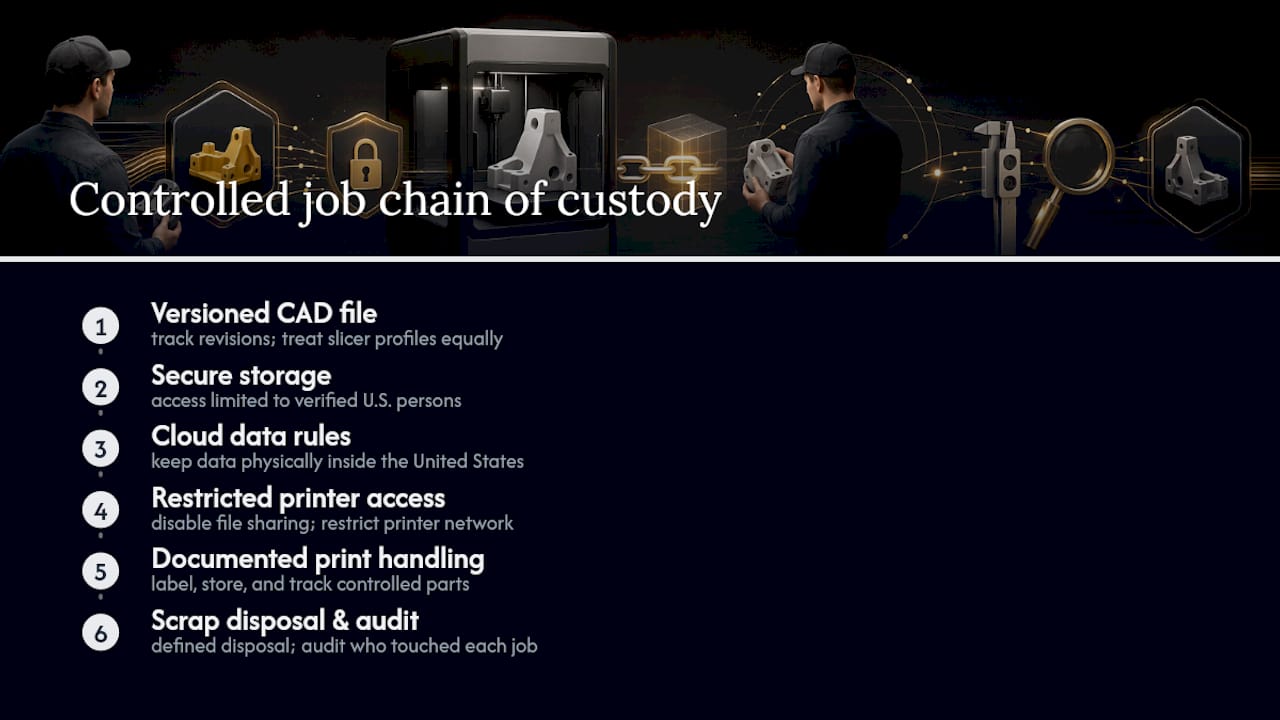

Handling and Storing ITAR-Controlled Files and Parts

Digital file discipline is where most ITAR exposure actually happens, since a single misdirected email or an unsecured cloud folder can constitute an unauthorized export. Controlled files need to live on systems with access limited to verified U.S. persons, with any cloud storage configured to keep data physically within the United States and away from foreign-accessible servers.

Physical printed parts carry their own handling requirements. A part manufactured from ITAR-controlled technical data should be stored, labeled, and tracked separately from commercial work, with a documented chain of custody covering who accessed the file, who ran the print, and where the finished part went. Scrap prints, failed test pieces, and even support material removed from a controlled part need a defined disposal process rather than ending up in a general recycling bin.

Version control matters as much as physical security. A revised CAD file or an updated slicer profile for a controlled part should be tracked with the same rigor as the finished part itself, since an outdated file left on a shared drive is still exportable technical data. Companies working in this space typically restrict printer network access, disable unnecessary file-sharing features on production machines, and audit which employees have touched a given job at each stage.

Getting ITAR Licenses and Export Classifications in Order

Before any ITAR-covered part or file moves, the organization handling it generally needs to register with the Directorate of Defense Trade Controls, a required step for manufacturers, exporters, and brokers of defense articles and services, independent of whether an export license has even been requested yet. Registration alone does not authorize an export. It’s the administrative prerequisite that makes a license application possible.

The classification step comes next, and it’s where many companies stumble. A part or its technical data needs to be checked against the United States Munitions List to determine whether it’s ITAR-controlled at all, or whether it instead falls under the Commerce Department’s Export Administration Regulations. Companies uncertain about classification can request a Commodity Jurisdiction determination from the State Department to get an official answer rather than guessing.

If a part or its data is confirmed ITAR-controlled and needs to move to a foreign person or entity, a specific export license or a Technical Assistance Agreement typically has to be approved before that transfer happens. This process can take weeks, and starting it only after a customer deadline is looming rarely ends well.

Security Practices for ITAR-Compliant 3D Printing Workflows

Physical and digital security controls need to work together, since a compliant workflow that’s technically secure but physically open to unauthorized visitors is still a gap. Printer access should be restricted to verified personnel, with production areas handling controlled jobs separated from general shop floor traffic where non-cleared staff or visitors might have line of sight to a screen or a build plate.

Personnel screening matters as much as any firewall setting. Only confirmed U.S. persons should have access to ITAR-controlled files or parts, and that status needs to be verified and documented, not assumed based on someone’s job title or tenure. Foreign nationals, including some visa holders, generally cannot access this material without a specific license exception.

On the digital side, network segmentation keeps production printers handling controlled jobs off networks that also touch general internet traffic or unmanaged devices. Audit logging that records who opened a file, who queued a print job, and when a part left the building creates the paper trail that matters if a compliance question ever comes up. Regular internal audits, rather than a one-time policy document, are what actually catch a gap before it becomes a violation.

Common Defense Applications of 3D Printing Under ITAR

Additive manufacturing has become a genuine tool inside the defense supply chain, and a handful of application types show up repeatedly across the industry. Replacement parts for legacy military equipment are a major use case, since original tooling for decades-old platforms is often long gone, and reverse engineering a worn component into a printable file solves a supply problem that traditional manufacturing can’t touch cost-effectively.

Prototyping for new defense systems is another common thread, where engineering teams use rapid printing to iterate on housings, brackets, and fixtures before committing to final production methods. Tooling and jigs used in the assembly of controlled hardware also frequently fall under ITAR scrutiny, even when the tooling itself isn’t a weapon system, because the technical data behind it describes a controlled process.

Field-deployable repair capability is a newer application, where portable printing setups let military units fabricate certain replacement components closer to where equipment actually breaks down, rather than waiting on a traditional parts pipeline. Each of these categories carries the same underlying requirement: the technical data behind the part, not just the finished object, is what triggers ITAR’s control obligations, and every workflow touching that data has to be built around that fact from the start.

Outsourcing FDM Printing vs. Buying Your Own Equipment

Outsourcing wins when a job needs specialized materials, scan-to-CAD accuracy, or repeatable results across a full batch. Buying a printer makes sense mainly for teams doing very rapid, low-stakes iteration where full control matters more than consistency. What often gets missed is the hidden cost: filament storage, hot-end maintenance, and the time spent re-tuning settings for every new material.

— Justin

How to Request a Quote and What to Send

The fastest path to a real number starts on CC 3D Labs’s services page, where you can see the full range of printing, scanning, and CAD work before deciding which quote form fits your project. For a straightforward printed part, the 3D print quote form is the direct route in.

If your project starts with a physical object instead of a file, whether it’s a cracked automotive bracket or a discontinued housing, the 3D scan quote form is the better starting point, and it feeds directly into reverse engineering and CAD reconstruction from there. For work that’s purely CAD, no scanning or printing needed yet, use the CAD quote form instead.

Whichever form you use, include your CAD or scan files, the material you’re considering, the number of parts, the end use, and any critical dimensions with tolerances. That’s what lets a test print get scheduled quickly instead of sitting in a back-and-forth email thread. Remember that every quote follows a test print of your actual part, not a generic catalog price, and that local jobs in the Greater Philadelphia area can be picked up residentially while everything else ships U.S.-wide.

Sources

• Processing-Structure-Property Relationships of Polycarbonate Samples Prepared by Fused Filament Fabrication | NIST
• Bambu Lab P1 Series | Reliable Out-of-the-Box Performance | Bambu Lab US

FAQ

Does CC 3D Labs Handle ITAR-Regulated Defense Parts?

CC 3D Labs focuses on FDM printing, handheld 3D scanning, and reverse engineering for prototypes, automotive restoration, and small-batch production. The company makes no certification claims and does not represent itself as an ITAR-registered defense manufacturer.

What Accuracy Can I Expect From FDM Printing?

A practical baseline for production-farm FDM work runs ±0.2 to 0.5 mm, depending on the part’s geometry and material. Tighter tolerances on mating features usually require a light post-print reaming or fit-adjustment step.

How Accurate Is Handheld 3D Scanning for Reverse Engineering?

Professional handheld 3D scanning at CC 3D Labs delivers accuracy to about 0.1 mm, which is precise enough for reproducing legacy automotive parts and checking fit against existing assemblies. Reflective or very thin-walled surfaces may need a matte spray coating before scanning to capture cleanly.

Why Does CC 3D Labs Quote After a Test Print Instead of Giving a Price Upfront?

Material behavior, orientation, and tolerance needs to vary enough between parts that a fixed price list would be inaccurate for most jobs. A test print confirms fit and finish first, and the quote is built from what that print actually shows.

Can I Get Parts Shipped Outside the Philadelphia Area?

Yes. Local customers in Bucks County and the Greater Philadelphia area typically use residential pickup, since CC 3D Labs has no walk-in storefront, while finished orders ship anywhere in the United States.

Recommended

• Test Print First: Engineers’ Scan to Fit 3D Printed Replacement Parts
• The 3D Part Optimization Process for Engineers
• Print Tolerance Standards Explained for Engineers
• Functional Parts Printing Guide for Engineers in 2026
