High-resolution scans look impressive, but resolution alone does not determine whether your data is usable. Understanding why 3D scan data integrity is crucial separates professionals who consistently hit tolerances from those who keep chasing errors back to the source. Data integrity covers accuracy, repeatability, traceability, and processing quality. Miss any one of those, and even a visually detailed point cloud can collapse your prototyping workflow before a single part is printed or machined. This article explains what integrity actually means in a scanning context, what threatens it, and how to protect it at every stage of your workflow.
Table of Contents
- Key Takeaways
- Why 3D scan data integrity is crucial: the core concepts
- Common threats to scan data integrity
- Best practices to protect and maintain data quality
- The business impact of accurate scan data
- My take on where most teams go wrong
- Get reliable scan data with Cc3dlabs
- FAQ
Key Takeaways
| Point | Details |
|---|---|
| Resolution does not equal accuracy | A high-resolution scan can still contain dimensional errors that ruin a prototype or manufactured part. |
| Integrity is a system-level property | Hardware, software, operator technique, and environment must all work together to produce trustworthy data. |
| Calibration is non-negotiable | Regular, traceable calibration prevents measurement drift and keeps scan data defensible for manufacturing acceptance. |
| Environment and operator matter as much as hardware | Temperature gradients, vibration, and poor scanning technique introduce errors that even premium scanners cannot correct. |
| Reliable data accelerates the entire workflow | Confident scan data reduces rework, speeds up iteration, and lowers the cost of production errors. |
Why 3D scan data integrity is crucial: the core concepts

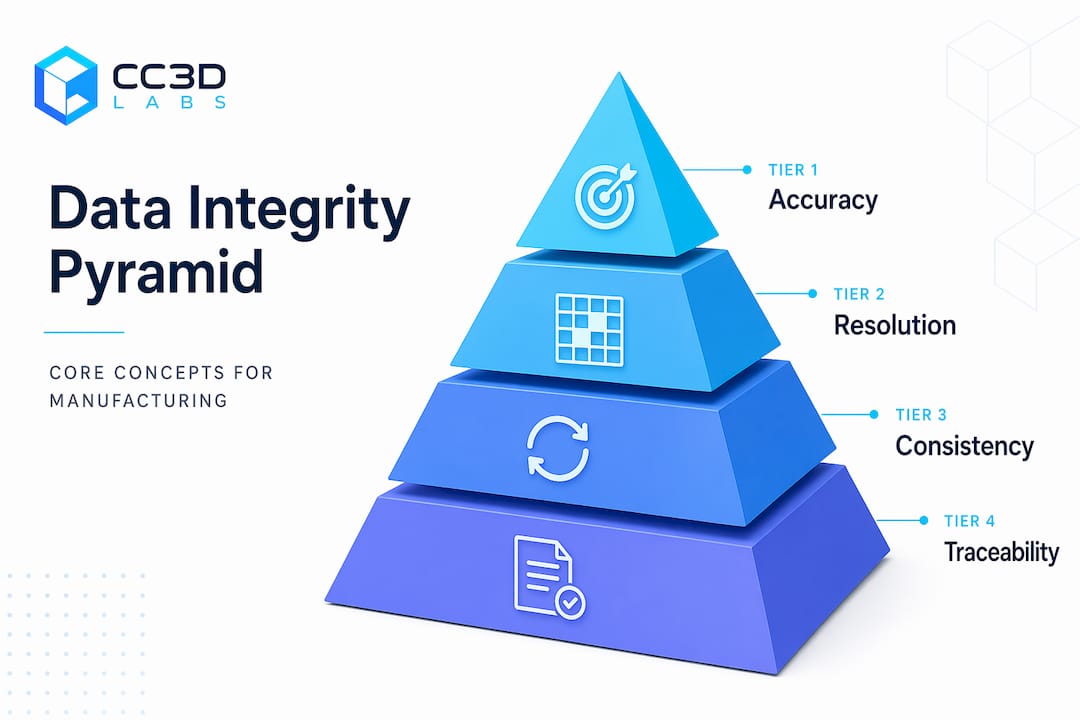

Before you can protect data integrity, you need a precise definition of what it includes. Four concepts form the foundation: accuracy, resolution, consistency, and traceability. Most professionals use the first two interchangeably, and that habit costs time and money.
Accuracy vs. resolution
Resolution and accuracy serve fundamentally different functions. Resolution describes how much surface detail the scanner captures. Accuracy describes how close those captured dimensions are to the physical truth of the object. A scanner can produce a beautifully detailed mesh at 0.05 mm point spacing that still carries a 0.3 mm dimensional error. In a product development workflow, the detail impresses stakeholders during review. The dimensional error shows up as a misfit during assembly.
High resolution also carries a practical cost. Excessive point density inflates file size, bogs down mesh repair, and slows every downstream process from CAD alignment to slicing. Matching resolution to intended use is not a compromise. It is the correct engineering decision.
Consistency and traceability
Reliable scan data depends on repeatability, not just one good result. If scanning the same part twice under identical conditions produces meaningfully different outputs, nothing in your workflow is defensible. Consistency lets you trust comparisons, revisions, and inspection sign-offs.
Traceability ties your scan results to a verifiable standard. Calibrated reference artifacts, documented scan settings, and formal quality reports are what transform a point cloud from a visual deliverable into a manufacturing document. Consider the difference between a scan submitted to a contract manufacturer alongside a formal quality report that documents control points, outlier handling, and calibration history versus one submitted without any of that context. The first one gets approved. The second one gets questions.
- Accuracy: Dimensional closeness to the physical object, measured against traceable standards
- Resolution: Point density and surface detail, which should be matched to the specific use case
- Consistency: Repeatability across sessions, operators, and equipment states
- Traceability: Documentation linking scan results to calibrated standards and documented procedures
Together, these four elements define what strong 3D scanning data reliability actually looks like in practice.
Common threats to scan data integrity
Understanding the risks is not about pessimism. It is about knowing exactly where to focus your attention. Data integrity in 3D scanning is an emergent property, meaning it arises from multiple interacting layers rather than from any single component. When vulnerabilities in those layers align, even a capable scanner produces flawed data. This is the Swiss-cheese model applied to metrology workflows.
Here are the most common sources of failure, ranked by how often they are overlooked:
-
Environmental conditions. Temperature, lighting, and vibration are the most underestimated threats to scan accuracy. Thermal expansion in a part being scanned in a warm production floor can shift dimensions measurably between the start and end of a single scan session. Air temperature gradients create measurement drift that no post-processing step can fully undo.
-
Operator technique. The scanning path, standoff distance, overlap between passes, and handling of reflective or dark surfaces all introduce variability. Two operators scanning the same part with the same scanner can produce outputs that differ by more than the printed tolerance on the drawing.
-
Hardware calibration drift. Sensors drift. Mechanical components develop play. A scanner that produced accurate results six months ago may no longer meet its stated specifications if calibration has not been maintained. This is particularly dangerous because the data often looks normal while carrying hidden dimensional errors.
-
Software processing errors. Registration algorithms, mesh smoothing filters, and hole-filling routines all make decisions that affect dimensional truth. Default settings are not optimized for every geometry or material. Blindly applying them without understanding the tradeoffs is a common source of data degradation.
-
Multiple interacting failures. The Swiss-cheese model predicts that single layers of defense rarely fail catastrophically on their own. An error in any one area is manageable. When poor environmental control, a drift-affected sensor, and aggressive mesh smoothing align in the same workflow, the result is data that looks clean but fails downstream.
Pro Tip: Before a major scan session, run a reference artifact through your full workflow, from capture to processed mesh. If the output falls outside your expected tolerance range, stop and find the cause before scanning the actual part.
Best practices to protect and maintain data quality
Knowing the threats is useful. Having a system to counter them is what actually protects your data. Reliability is a system-level outcome driven by calibration, environment, operator discipline, and software controls working together. No single action is enough on its own.
Calibration and traceable standards
Calibrate your scanner on a scheduled basis using certified reference artifacts. Document every calibration event with date, environmental conditions, and results. This documentation is what makes your data defensible for manufacturing acceptance in contract environments.
Modern metrology-grade scanners in 2026 can achieve volumetric accuracy of 0.03 mm + 0.05 mm per meter using multi-line laser modes, but that performance is only realized when calibration is current and conditions are controlled.
Hardware selection and environment control
| Factor | What to prioritize | What to avoid |
|---|---|---|
| Scanner grade | Metrology or industrial grade with stable housing | Consumer devices for tight-tolerance work |
| Connectivity | Onboard processing with dual Wi-Fi to prevent data loss | Wireless setups that stream raw packets without error correction |
| Environment | Temperature-controlled, vibration-dampened, diffuse lighting | Bright window light, HVAC drafts, concrete floors near heavy machinery |
| Surface prep | Matte reference spray or targets for reflective/dark surfaces | Relying on raw surface appearance without preparation |
Software and post-processing controls
Do not treat post-processing as cleanup. Every filter and alignment decision is a data modification. Use the minimum smoothing necessary for your application. Document the processing settings applied to each dataset. For high-quality manufacturing scans, the goal is mesh fidelity to the physical object, not visual appeal.
Pro Tip: Save both the raw point cloud and the processed mesh as separate files. If an alignment or filtering decision turns out to be wrong during CAD review, you can reprocess from raw data without rescanning the part.
- Align scans using physical reference targets, not just software-generated feature matching
- Run mesh quality checks before exporting, including hole counts, intersecting faces, and non-manifold edges
- Match your export format and polygon count to what the downstream tool actually needs
The business impact of accurate scan data
The significance of 3D data integrity becomes clearest when you trace it directly to project outcomes. Reliable scan data reduces costly downstream failures and builds confidence in every decision that follows the scan. That effect compounds quickly in iterative product development.
Consider a typical reverse engineering project. A product team scans an existing component to create a replacement part. If the scan carries a 0.2 mm accuracy error and the designer does not detect it, the CAD model inherits that error. The prototype is printed or machined to that incorrect model. The fit test fails. The team scans again, remodels, reprints. Each cycle costs time and materials. The root cause was never the printing or machining. It was the scan data.
The importance of 3D scan accuracy is equally clear in inspection workflows. When scan data is traceable and consistent, it serves as a legal and contractual record of part geometry at a specific point in time. That record supports quality sign-offs, warranty claims, and deviation approvals with documented evidence rather than verbal assurance.
- Accurate scan data cuts the number of prototype iterations by giving designers a reliable baseline to work from
- Clean, well-structured mesh files reduce prep time in CAD and slicing software, directly lowering labor costs per part
- Traceability documentation supports ISO and AS9100 quality requirements, which matter in aerospace, medical, and automotive supply chains
- Consistent data across scan sessions makes it possible to detect genuine part wear or tooling drift, rather than noise from scan variability
For teams doing rapid prototyping, the benefits of accurate 3D scans are not abstract. They show up in the number of design cycles completed per week, the scrap rate on first-article inspection, and the speed of design sign-off. Those are the metrics that determine project profitability.
My take on where most teams go wrong
I have reviewed a lot of 3D scanning workflows over the years, and the pattern that frustrates me most is not carelessness. It is misplaced focus. Teams spend considerable money on a premium scanner and then operate it in conditions that undermine every advantage the hardware offers. The scanner becomes a status symbol rather than a calibrated instrument.
The misconception I run into most often is that a higher price tag or a more impressive spec sheet guarantees better data. It does not. A well-operated mid-range scanner in a controlled environment with a disciplined operator consistently outperforms a metrology-grade instrument scanned on a vibrating factory floor by someone who has not been trained on the specific geometry they are capturing.
What I have learned from working through enough failed prototypes is that workflow discipline matters more than any single tool upgrade. Calibration schedules, environmental logs, processing documentation, and reference artifacts are unglamorous. They do not appear in marketing materials. But they are the actual mechanism by which good data gets produced reliably, not occasionally.
My honest recommendation is to build your scanning protocol before you buy your next scanner. Understand exactly what the workflow demands in terms of accuracy, consistency, and traceability. Then select hardware that fits that protocol. The teams that do this consistently produce better outcomes than teams chasing the highest-spec device without a system around it.
— Justin
